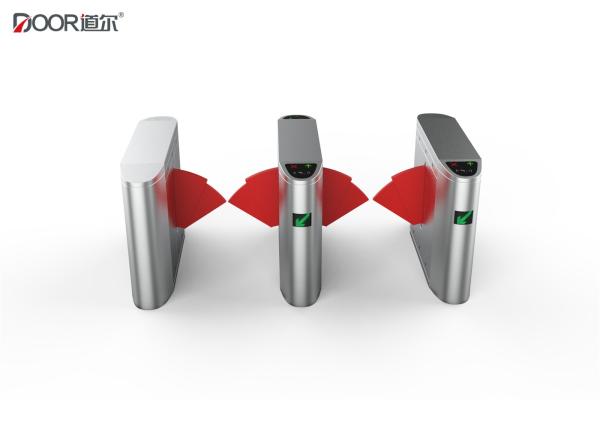

900mm Passage Width Real SUS 304 Stainless Steel Security Barrier Turnstile For Handicapped Lane
Flap Turnstile Parameter:
| Structure parameters |
| Housing material | Real SUS304 stainless steel |
| Thickness | Cover 1.5mm 1.2mm housing |
| Arm material | Acrylic / Soft arm |
| Technical parameters |
| Size | 1400*300*1000mm |
| Lane width | 550mm |
| Arm Length | 260mm |
| Passing speed | 35--50 people/min |
| Open/close speed | 0.5sec |
| Weight | 60KG |
| infrared sensors | 5 pairs |
| MCBF | 5.000.000 times |
| Application | Indoor |
| Rotating directional | Single way or Bi-directional adjustable |
| Noise | <55db |
| Operating temperature | -15 to 60℃ |
| Relative humidity | 5% to 95% |
| Package | Plywood case |
| Electronic parameters |
| Power supply | 110-220V/AC, 50/60HZ |
| Rated power | 40W |
| Input signal | Dry contact |
| Driving motor | Brushless motor |
| Mainboard | Independent developed patent mainboard |
Flap Barrier Turnstile Features:
1. Abnormal alarm function, user-friendly maintenance and use.
2. Using the multiple anti-clamping designs to protect the personal safety of passengers in maximum limit.
3. Illegal intrusion, trailing alarm, reverse entry, gate is automatically closed.
4. Equipped with the dry contact signal input interface, compatible with all kinds of access controllers.
5. It will alarm when break in illegally, followed by people,passed overtime,damaged for equipment.
6. After swiping card in normal condition, if within the permitting time passages do not pass, the system will cancel the users’ pass right and arm close automatically.
7. Arm automatically open when the power off to make sure safety In case of emergency.
8. Optional for external counter to record the people numbers for each lane.
9. Blushless motor with long-life span
10. Wide lane for baby carriage and handicap
Application:
Office and administrative buildings
Ministries and public buildings
Banks and financial institutions
Industrial installations
Residential areas
Schools, colleges and universities
Access control Mode:
FAQ:
Q1: Do you have English version system?
A: Yes, we can provide English version system. Also you can use your own system as well.
Q2: Does the equipement include control board?
A: Yes, it is with control board. But if need our system to management, need to order extra access control board.
Q3: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with connection port.
Q4: How can we install the turnstiles/barrier gates? Is it easy?
A:Yes, it's easy to install, we have done most of the jobs before sending our products. You just need fix the gates with screws, and connect power supply cables and internet cables.Also we provide one sheet of specific manual specification in the package.
Q5: What is your company’s strength?
A: We are the top 3 manufacturer in turnstile field in China. And we are listed company with famous brand in China. We have more than 400 employees, a R&D group with 160 people, 15-person customized team, 18 offices, 9 agents and more than 20 distributors all around China.
Q6: How do you do after-sale service?
A: We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.
Q7. How about the lead time?
Normally we have raw material in stock for the hot sale models of standard products. Regular products need 5-7 working days. The customized products need 15-20 working days.
